Yesterday I posted a figure showing how surface temperatures compare with IPCC model predictions. I chose to use the RSS satellite record under the assumption that the recent IPCC and CCSP reports were both correct in their conclusions that the surface and satellite records have been reconciled. It turns out that my reliance of the IPCC and CCSP may have been mistaken.

I received a few comments from people suggesting that I had selectively used the RSS data because it showed different results than other global temperature datasets. My first reaction to this was to wonder how the different datasets could show different results if the IPCC was correct when it stated (PDF):

New analyses of balloon-borne and satellite measurements of lower- and mid-tropospheric temperature show warming rates that are similar to those of the surface temperature record and are consistent within their respective uncertainties, largely reconciling a discrepancy noted in the TAR.

But I decided to check for myself. I went to the NASA GISS and downloaded its temperature data and scaled to a 1980-1999 mean. I then plotted it on the same scale as the RSS data that I shared yesterday. Here is what the curves look like on the same scale.

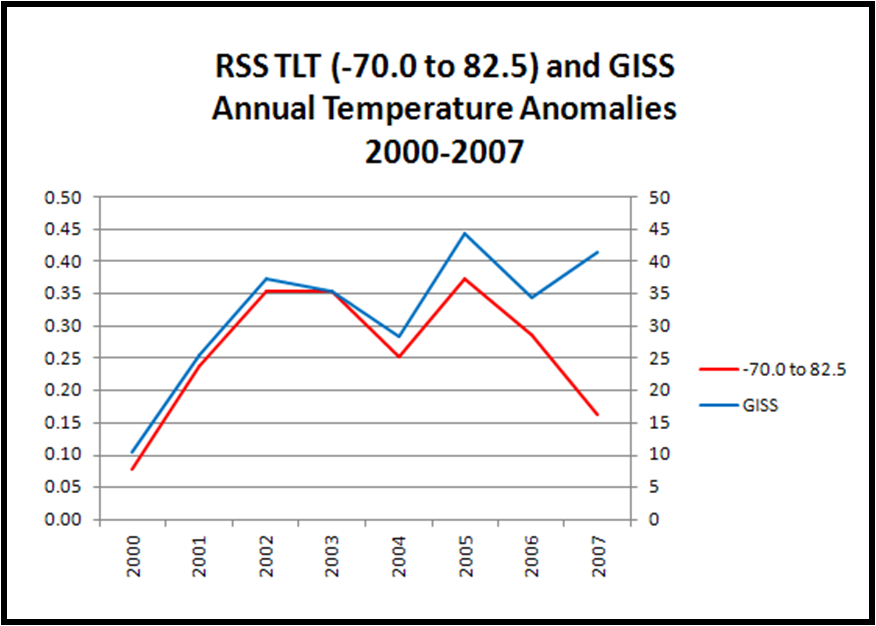

RSS v. GISS.png

Well, I’m no climate scientist, but they sure don’t look reconciled to me, especially 2007. (Any suggestions on the marked divergence in 2007?)

What does this mean for the comparison with IPCC predictions? I have overlaid the GISS data on the graph I prepared yesterday.

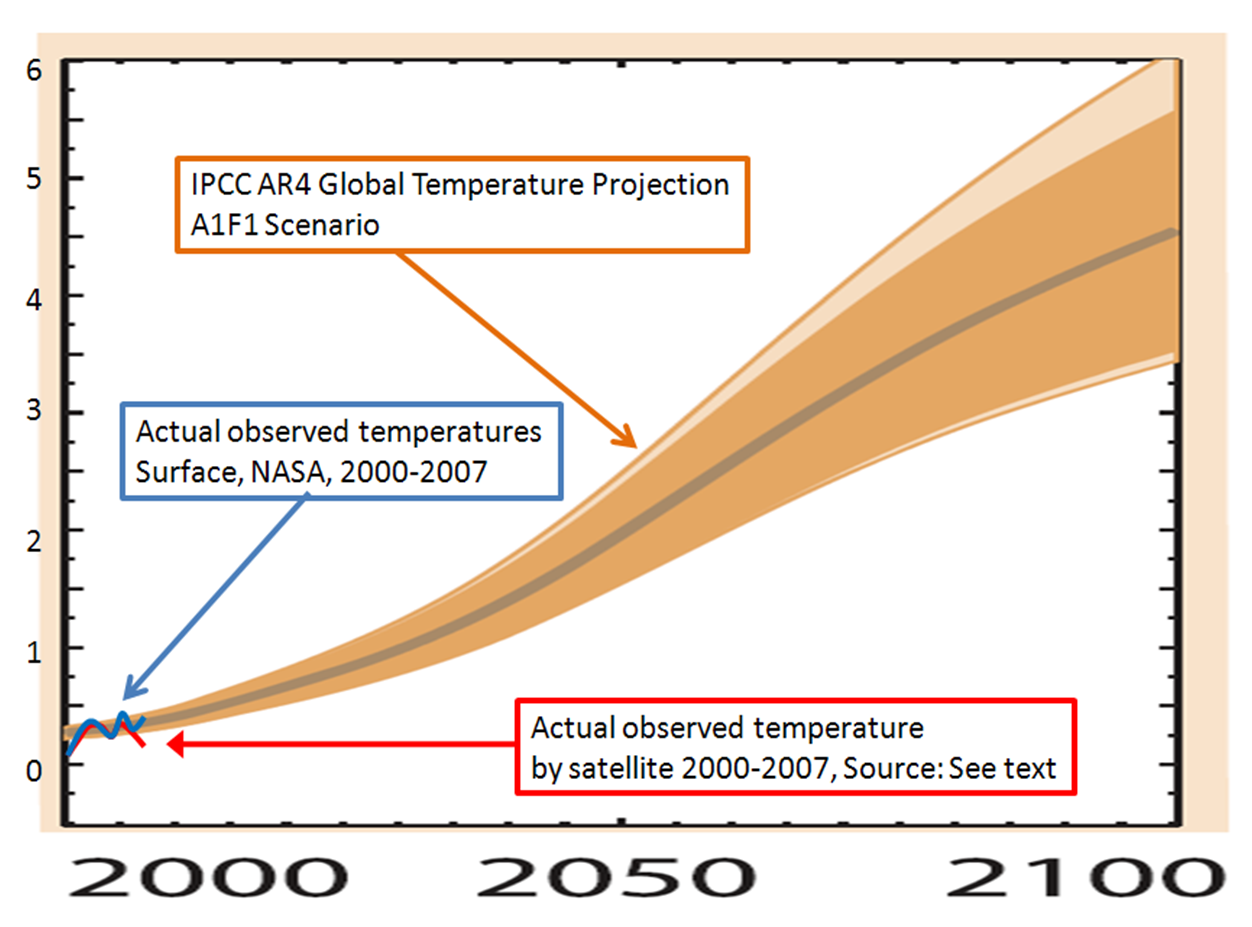

AR4 Verificantion Surf Sat.png

So using the NASA GISS global temperature data for 2000-2007 results in observations that are consistent with the IPCC predictions, but contradict the IPCC’s conclusion that the surface and satellite temperature records are reconciled. Using the RSS data results in observations that are (apparently) inconsistent with the IPCC predictions.

I am sure that in conducting such a verification some will indeed favor the dataset that best confirms their desired conclusions. But, it would be ironic indeed to see scientists now abandon RSS after championing it in the CCSP and IPCC reports. So, I’m not sure what to think.

Is it really the case that the surface and satellite records are again at odds? What dataset should be used to verify climate forecasts of the IPCC?

Answers welcomed.
